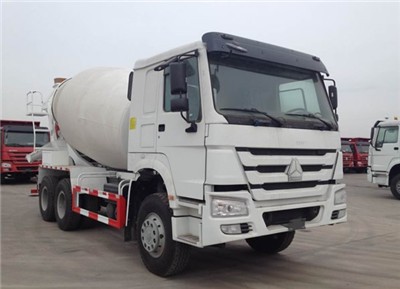

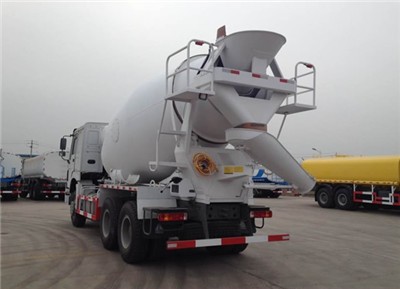

ZZ5257GJBN3641W (8 CBM)
| Chassis Model | ZZ5257GJBN3641W | ||
| Engine | Model | WD615.69 | |
| Horsepower | 336 | ||
| Maximum outputKw/r/min | 247/2200 | ||
| Maximum torqueN.m/r/min | 1350/1300-1600 | ||
| Type | 6-cylinder in line, 4-stroke, water-cooled,turbo-charged & inter-cooled, direct injection | ||
| Bore x Stroke | 126x130mm | ||
| Valve | 2 | ||
| Displacement | 9.726L | ||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | |||
| Cab | SINOTRUK HW76 lengthen cab, single bunk | ||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||
| Transmission | SINOTRUK HW13710 or HW19710 transmission ,10 forward and 2 reverse | ||
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakesOption: disc brake | ||
| Steering | German ZF8098 Steering Gear Box ,hydraulic steering with power assistance,Ratio:22.2-26.2 | ||
| Rear Axles | HC16 Heavy reduction drive axle,STR hub-eduction with differential locks betweenwheels and axles, enforced STR axle,ratio:5.73 | ||
| Brake System | Service brake:dual circuit compressed air brakeParking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake | ||
| Wheels & Tyres | Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tyreOption:12.00R20 radial tyre | ||
| Electrics | Operating voltage:24V,negative groundedStarter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2×12 V,165 Ah Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light Option:2x180Ah Batteries | ||
| Oil Tank | 300L | ||
| Delivery date | Within 50 working-days after receipt advance | ||
| Weight in kg | Gross vehicle weight 25000Front axle loading capacity 9000 Rear axles loading capacity 2×16000 | ||
| Performance | Maximum drving speed (km/h) 90Fuel consumption (1/100 km) 38 | ||
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standardpacking of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | ||
all truck parts availbale
| 280 | ZQ1840825 | Hexagonal flange bolt M8 | 2 |
| 281 | ZQ32008 | Hexagonal flange nut M8 | 2 |
| 282 | AZ9525771015 | T50SOSFT6LG-E6.5mm Kongbin tree head tie | 4 |
| 283 | Q41210 | External serrated lock washer | 1 |
| 284 | WG9525773013 | Taillight wiring harness (NJ17 (with buzzer) | 1 |
| 285 | WG9618713101 | Reversing buzzer | 1 |
| 286 | YZ952577500013 | L-shaped bracket | 1 |
| 287 | ZQ1841035 | Hexagonal flange bolt M10 | 2 |
| 288 | ZQ32010 | Hexagonal flange nut M10 | 2 |
| 289 | 1.90003E+11 | Plastic fastening belt A5*280 | 20 |
| 290 | Q40208 | Large washer | 4 |
| 291 | Q41208 | External serrated lock washer | 4 |
| 292 | WG1671110103 | Protective strip | 95 |
| 293 | WG1671820271 | Felt pad | 2 |
| 294 | WG9525360179 | Plastic fastening belt (811W97401-0631) | 10 |
| 295 | WG9525584001 | 40A switching relay | 2 |
| 296 | WG9525771021 | Front marker light harness | 1 |
| 297 | WG9525771052 | Cab ceiling harness (H76L/77L) | 1 |
| 298 | WG9525771240 | Left turn and marker light connection wire | 1 |
| 299 | WG9525771241 | Right turn and marker light connection wire | 1 |
| 300 | WG9725580021 | Diode assembly (3A) | 1 |
| 301 | YG9525771028 | Haohan cab wiring harness (NJ17/Euro II NanoBCU+TFT) | 1 |
| 302 | YZ952558100026 | Copper gasket (φ8.5) (HOWO N) | 6 |
| 303 | YZ952558100027 | Copper gasket (φ6.4) (HOWO N) | 3 |
| 304 | YZ952558100321 | Electrical junction box nameplate | 1 |
| 305 | YZ952577200062 | WP12 Euro II model electronic pump connection line (HOWO N) | 1 |
| 306 | ZQ1840830 | Hexagonal flange bolt M8 | 4 |
| 307 | ZQ32008 | Hexagonal flange nut M8 | 4 |
| 308 | 1.90003E+11 | Plastic fastening belt A5*280 | 20 |
| 309 | 1.90003E+11 | Plastic fastening belt B8*200 | 20 |
| 310 | AZ9525771015 | T50SOSFT6LG-E6.5mm Kongbin tree head tie | 8 |
| 311 | WG1200190040 | Dry air filter blockage indicator switch | 1 |
| 312 | WG9100360134 | Spacer ring | 10 |
| 313 | WG9100770028 | Protective cover | 1 |
| 314 | WG9525580130 | 100A fuse | 1 |
| 315 | WG9525580266 | Wiring harness fixing bracket for junction box | 1 |
| 316 | WG9525583381 | Wiring harness bracket assembly | 1 |
| 317 | WG9525583501 | Wire harness pipe clamp assembly | 1 |
| 318 | WG9525720031 | Left side marker light | 1 |
| 319 | WG9525720032 | Right side marker light | 1 |
| 320 | WG9525771116 | Switch-fuse connecting wire (30cm) | 1 |
| 321 | WG9525772101 | Frame wiring harness (S34/6x4) | 1 |
| 322 | WG9525774372 | Battery box-fuel tank wiring harness (right side 1300 (with insurance) | 1 |
| 323 | ZQ32006 | Hexagonal flange nut | 2 |
| 324 | WG9100760102 | New power main switch | 1 |
| 325 | ZQ1840616 | Hexagonal flange bolt M6 | 2 |
| 326 | AZ972076000001 | 165Ah maintenance-free battery (upgraded version) | 2 |
| 327 | LG97003600202 | Rubber sheath (Φ50x3) | 1 |
| 328 | Q340B08 | Type 1 hexagonal nut | 6 |
| 329 | WG1682110021 | Rubber buffer block | 7 |
| 330 | WG9525580900 | Wire harness bracket (small) | 2 |
| 331 | WG9525760301 | Battery box body assembly | 1 |
| 332 | WG9525760307 | Tension screw | 6 |
| 333 | WG9525760313 | Rubber pad | 1 |
| 334 | WG9525760314 | Battery box cover | 1 |
| 335 | WG9525760316 | Battery pressure plate (135/165/180) | 2 |
| 336 | ZQ1811460TF6 | Hexagonal flange toothed bolt M14*1.5 | 6 |
| 337 | ZQ1841025 | Hexagonal flange bolt M10 | 2 |
| 338 | ZQ32008 | Hexagonal flange nut M8 | 12 |
| 339 | ZQ32010 | Hexagonal flange nut M10 | 2 |
| 340 | ZQ32514T13F6 | Hexagonal flange toothed nut M14*1.5 | 6 |
| 341 | Q40208 | Large washer | 1 |
